PoE (Power Over Ethernet): What It Is And How It Works
- Published on
- Guides
Power over Ethernet, commonly referred to as PoE, is a technology that allows both power and data to be transmitted over a single Ethernet cable. This approach eliminates the need for separate power sources and wiring, simplifying installation and reducing costs for devices such as cameras, access points, and IoT sensors.
The Basics of PoE
At its core, PoE works by injecting electrical power into Ethernet cables through network switches or PoE injectors. Devices capable of receiving PoE, known as Powered Devices (PDs), extract the power they need directly from the cable. Meanwhile, the source, referred to as Power Sourcing Equipment (PSE), provides the required energy.
A typical Ethernet cable consists of four twisted pairs of wires, though only two are used for data transmission in standard Ethernet. PoE utilizes the remaining pairs or superimposes power onto the same wires as data without interference, enabling seamless delivery of both.
Key Benefits of PoE
1. Simplified Wiring: One cable for both power and data reduces clutter and installation complexity.
2. Flexibility: Devices can be installed in locations without nearby power outlets.
3. Cost Efficiency: Eliminates the need for additional electrical infrastructure.
4. Scalability: Perfect for expanding networks, especially in settings with multiple low-power devices.
PoE Standards and Capabilities
Several PoE standards define the amount of power deliverable over Ethernet:
• IEEE 802.3af (PoE): Up to 15.4W per port.
• IEEE 802.3at (PoE+): Up to 30W per port.
• IEEE 802.3bt (PoE++): Supports up to 60W (Type 3) or 100W (Type 4) per port.
The exact power available to the device depends on the distance between the PSE and PD, as longer cables introduce power loss.

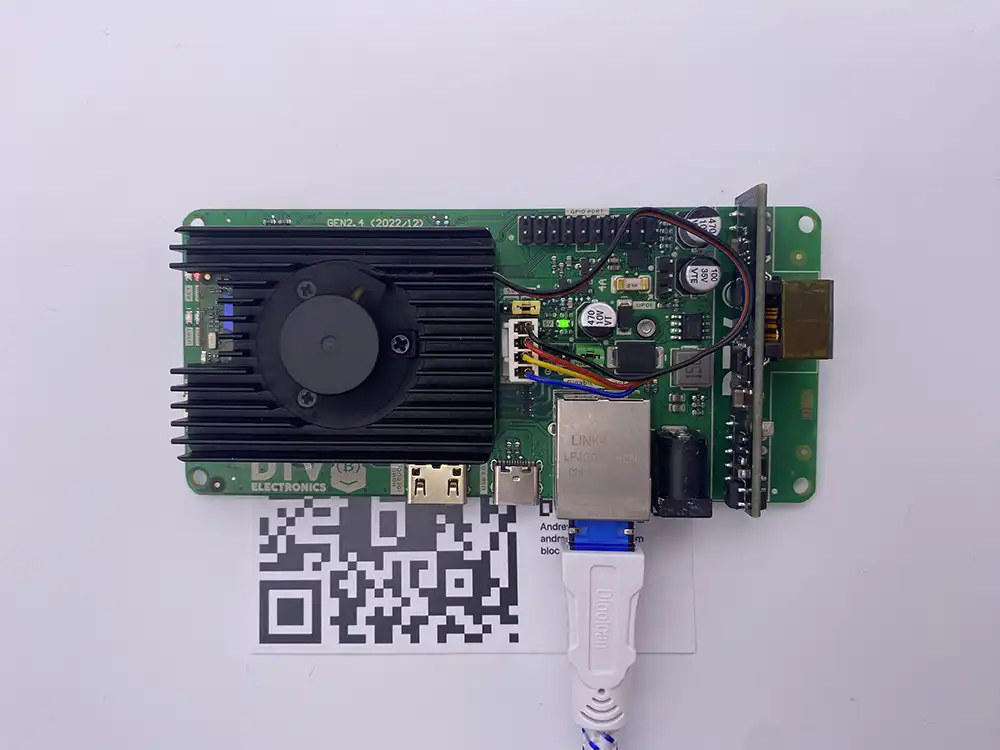

PoE in The CmRat: Integrating Power Over Ethernet
Our flagship product, The CmRat, takes PoE capabilities a step further, incorporating them into its design to power advanced functionalities without additional wiring. By leveraging PoE, the CmRat ensures operational efficiency and ease of deployment, particularly in environments requiring reliable and compact solutions.

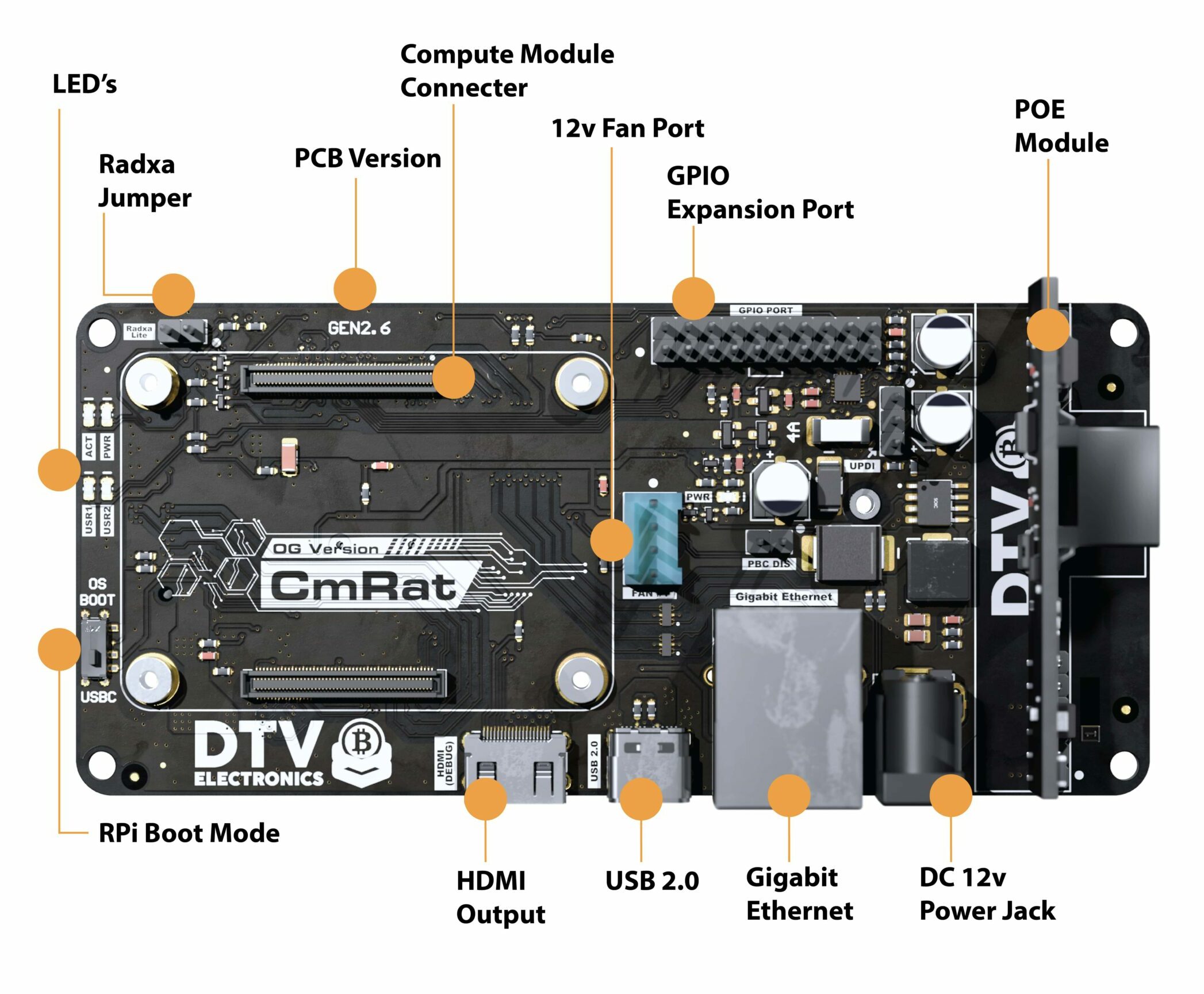

How The CmRat Uses PoE
• Unified Connectivity: This exclusive carrier board provides both power and high-speed data over Ethernet, ensuring seamless operation without dependency on external power supplies.
• Versatile Applications: Ideal for powering devices like embedded sensors, monitoring systems, bitcoin nodes, home servers, or even industrial equipment.
• Streamlined Deployment: PoE in CmRat eliminates the need for local power outlets, offering a cleaner setup, greater placement flexibility and reducing setup time.
A Practical Example
Imagine deploying the CmRat in a warehouse where IoT sensors need to monitor inventory. Without PoE, you’d require separate power lines for each sensor, dramatically increasing installation costs and complexity.
With PoE, a single Ethernet cable it’s enough, delivering both power and data to each sensor, simplifying maintenance and improving efficiency.
Conclusion
Power over Ethernet represents a game-changing approach to networked device deployment. Its ability to unify power and data transmission reduces infrastructure needs, enhances scalability, and offers unmatched convenience.
For specialized applications like those supported by CmRat’s PoE module, this technology opens doors to innovative deployments in industrial automation, smart homes, and more. Whether you’re designing an IoT network or setting up a sophisticated monitoring system, PoE ensures simplicity, reliability, and flexibility in every connection.
